Pipe Fitting

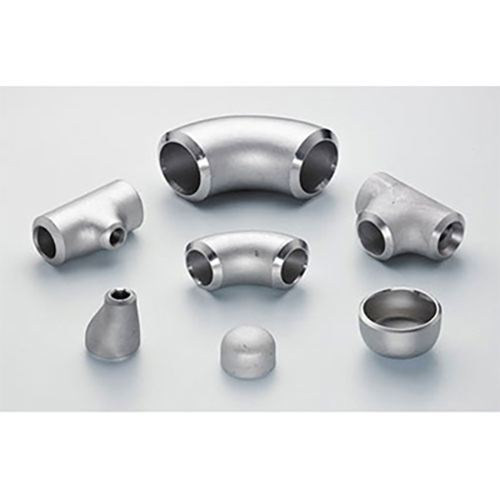

• Application
• other, Oil & Gas, Petrochemical, Water, Power Plant

• Bend Radius
• 1.5D / 3D Available

• Coating Type
• Uncoated

• Color
• Silver

• Connection
• Other, Butt Weld

• Connection Type
• Welded

• Diameter
• 15 mm to 1200 mm

• Flexibility
• Rigid

• Length
• As per Specification / Standard

• Material
• Stainless Steel

• Material Grade
• 304 / 304L / 316 / 316L

• Outer Diameter
• 1/2 to 48 (DN15 to DN1200)

• Product Type
• Other, Butt Weld Fittings

• Rated Pressure
• Class 150 to 2500

• Sealing Type
• Metal-to-Metal

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Reducer, Cap

• Standard
• Other, ASTM A403 / ASME B16.9

• Surface Treatment
• Other, Smooth Finished, Pickled

• Temperature Range
• -20C to 800C

• Tensile Strength
• 520 MPa (Min)

• Thickness
• Sch 10S, Sch 40S, Sch 80S, Sch 160

• Tolerance
• 0.1 mm

• Usage
• Pipeline System, Fluid Transmission

• Yield Strength
• 205 MPa (Min)

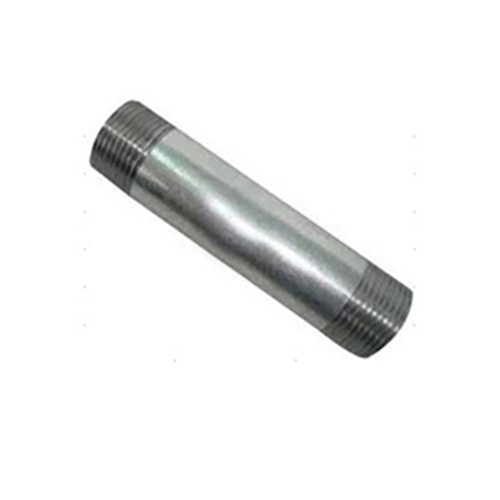

• Application
• other, Industrial, Plumbing, Oil & Gas

• Color
• Silver

• Connection
• Other, Male Threaded

• Connection Type
• Threaded

• Diameter
• Varies as per requirement

• Flexibility
• Rigid

• Length
• 50 mm to 300 mm

• Material
• Stainless Steel

• Material Grade
• SS304/316

• Outer Diameter
• 1/2 inch to 4 inch

• Product Type
• Other, Nipple Fittings

• Rated Pressure
• Up to 3000 PSI

• Sealing Type
• Thread Sealing

• Section Shape
• Round

• Shape
• Other, Cylindrical

• Standard
• Other, ASTM A182

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 200C

• Tensile Strength
• 515 MPa

• Thickness
• 3 mm

• Thread Type
• NPT/BSP

• Tolerance
• 0.01 mm

• Usage
• Pipe Fitting

• Yield Strength
• 205 MPa

• Application
• other, Oil & Gas, Chemical, Petrochemical, Water Supply, Food Processing

• Bend Radius
• As per standard

• Color
• Metallic Silver

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• Varies as per reducer size

• Flexibility
• Rigid

• Length
• Variable (as per specification)

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316 / SS316L

• Outer Diameter
• DN15 to DN600 (1/2 to 24)

• Product Type
• Other, Reducer Fittings

• Rated Pressure
• Up to 40 bar

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Concentric / Eccentric

• Standard
• Other, ANSI B16.9, ASTM A403, DIN 2616, EN 10253

• Surface Treatment
• Other, Polished / Pickled

• Temperature Range
• -20C to +425C

• Tensile Strength
• 515 MPa (min - SS304)

• Thickness
• 2 mm to 10 mm

• Tolerance
• 0.5 mm

• Usage
• Pipe Fittings & Flow Reducing Connections

• Yield Strength
• 205 MPa (min - SS304)

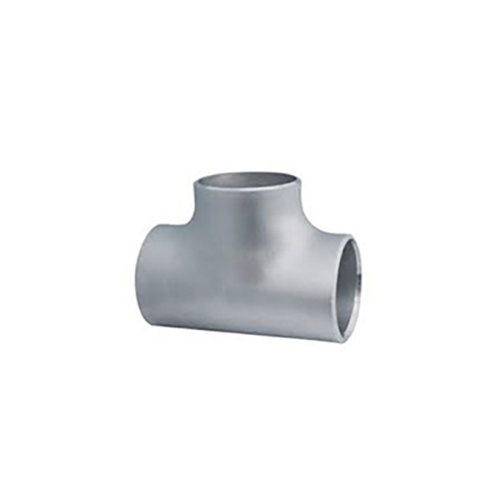

• Application
• other, Oil & Gas, Chemical, Water Supply

• Bend Radius
• As per Standard

• Color
• Silver

• Connection
• Other, Butt Welded

• Connection Type
• Welded

• Diameter
• 1 inch to 12 inch

• Flexibility
• Rigid

• Length
• Standard or as required

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316

• Outer Diameter
• 1 inch to 12 inch

• Product Type
• Other, Tee Fittings

• Rated Pressure
• Up to 3000 PSI

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Tee (T-shaped)

• Standard
• Other, ASTM A403 / ASME SA403

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 220C

• Tensile Strength
• 515 MPa Min

• Thickness
• 2 mm

• Tolerance
• 0.1 mm

• Usage
• Pipeline Connection

• Yield Strength
• 205 MPa Min

• Application
• other, Oil & Gas, Petrochemical, Power Plant, Water System

• Bend Radius
• As per ASME B16.11

• Coating Type
• Anti-corrosive Coating

• Color
• Black / Silver

• Connection
• Other, Threaded / Socket Weld

• Connection Type
• Screwed / Socket Weld

• Diameter
• Up to 4 inch

• Flexibility
• Rigid

• Length
• As per standard or client requirement

• Material
• Other , Carbon Steel / Stainless Steel / Alloy Steel

• Material Grade
• ASTM A105 / F304 / F316 / F22

• Outer Diameter
• 1/8 to 4 (3 mm to 100 mm)

• Product Type
• Other, Forged Fittings

• Rated Pressure
• 2000# / 3000# / 6000# / 9000#

• Sealing Type
• Metal to Metal / PTFE

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Coupling, Union, Plug, Bushing, Cap

• Standard
• Other, ASTM A105 / A182 / A350 / ASME B16.11

• Surface Treatment
• Other, Black / Galvanized / Sand Blasted

• Temperature Range
• -29C to 593C

• Tensile Strength
• 485 MPa min

• Thickness
• Schedule 40 / 80 / 160 / XXS

• Thread Type
• NPT / BSP / BSPT / Metric

• Tolerance
• 0.5 mm

• Usage
• Industrial Pipe Fittings

• Yield Strength
• 250 MPa min

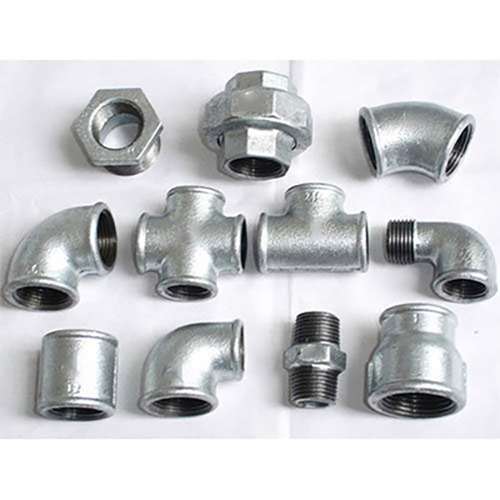

• Application
• other, Water, Gas, Oil, Air Piping Systems

• Bend Radius
• As per IS Standard for Fittings

• Coating Type
• Zinc (Hot Dip Galvanized)

• Color
• Silver Grey

• Connection
• Other, Threaded

• Connection Type
• BSP Threaded

• Diameter
• 1/2 inch to 4 inches (15 mm to 100 mm nominal bore)

• Flexibility
• Rigid

• Length
• Varies as per fitting (50 mm to 300 mm typical)

• Material
• Other , Galvanized Iron (GI)

• Material Grade
• Mild Steel conforming to IS:1239 Grade A or B

• Outer Diameter
• 15 mm to 100 mm

• Product Type
• Other, GI Pipe Fittings

• Rated Pressure
• Up to 25 Bar (depending on fitting size and standard)

• Sealing Type
• Threaded (requires PTFE tape or pipe dope)

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Union, Socket, Nipple, Reducer, Bend, Coupler, Plug, Cap, Flange

• Standard
• Other, IS:1239, BS:1387, ASTM A153

• Surface Treatment
• Other, Hot Dipped Galvanized

• Temperature Range
• -10C to +80C

• Tensile Strength
• 320 MPa

• Thickness
• 2.65 mm to 5.40 mm (as per fitting size)

• Thread Type
• BSP (British Standard Pipe), NPT (optional)

• Tolerance
• 2% or as per IS:1239

• Usage
• Plumbing, Water Supply, Gas Pipe Networks, Industrial Piping

• Yield Strength
• 195 MPa

• Application
• other, Oil & Gas, Petrochemical, Power Plant, Water Supply

• Bend Radius
• Standard As Per Fitting

• Coating Type
• Rust Preventive Oil

• Color
• Silver, Grey

• Connection
• Other, Socket Weld

• Connection Type
• Welded

• Diameter
• 3.18 mm to 114.3 mm

• Flexibility
• Rigid

• Length
• Custom/Standard Lengths

• Material
• Other , Stainless Steel, Carbon Steel, Alloy Steel

• Material Grade
• ASTM A105, A182 F304/L, F316/L, F11, F22

• Outer Diameter
• 1/8 NB to 4 NB

• Product Type
• Other, Socket Weld Fittings

• Rated Pressure
• 2000LBS, 3000LBS, 6000LBS, 9000LBS

• Sealing Type
• Metal-to-Metal

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Coupling, Union, Cross, Cap, Reducer

• Standard
• Other, ASTM A182, ASME B16.11, ANSI, MSS SP-83

• Surface Treatment
• Other, Polished, Sand Blasted, Pickled

• Temperature Range
• -20C to 600C

• Tensile Strength
• 485 MPa (min)

• Thickness
• Sch 10s to Sch 160

• Tolerance
• 0.1 mm

• Usage
• Pipe Connections, Industrial Piping

• Yield Strength
• 205 MPa (min)

• Application
• other, Oil & Gas, Petrochemical, Power Plant

• Bend Radius
• 1D, 1.5D, 2D, Customized

• Coating Type
• Anti-rust Painted

• Color
• Black

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• As per Standard

• Flexibility
• Rigid

• Length
• Standard or Customized

• Material
• Carbon Steel

• Material Grade
• A234 WPB

• Outer Diameter
• 1/2 to 48 (12.7 mm to 1219 mm)

• Product Type
• Other, Pipe Fitting

• Rated Pressure
• Up to 6000 psi

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Reducer, Cap

• Standard
• Other, ASTM A234 / ANSI B16.9

• Surface Treatment
• Other, Black Painted / Galvanized

• Temperature Range
• -20C to 500C

• Tensile Strength
• 415 MPa Min

• Thickness
• Sch 40 / Sch 80 / Sch 160

• Tolerance
• 0.5 mm

• Usage
• Industrial Piping Systems

• Yield Strength
• 240 MPa Min

• Application
• other, Water, Gas, Oil, Air, Steam

• Bend Radius
• As per fitting geometry

• Coating Type
• Zinc Coated

• Color
• Silver / Metallic Grey

• Connection
• Other, Screwed / Threaded

• Connection Type
• Female / Male Threaded

• Diameter
• 1/2 inch to 4 inch

• Flexibility
• Rigid

• Length
• Varies as per fitting type

• Material
• Other , Galvanized Iron (GI)

• Material Grade
• IS 1239 / AISI 1010 - 1020

• Outer Diameter
• 15 mm to 100 mm

• Product Type
• Other, GI Screwed Pipe Fittings

• Rated Pressure
• Up to 20 bar

• Sealing Type
• Threaded Joint Sealing (PTFE tape or hemp)

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Coupler, Union, Socket, Nipple, Cap, Plug, Reducer, Cross

• Standard
• Other, IS 1879 / BS 143 & 1256 / ASTM A197

• Surface Treatment
• Other, Hot-dip Galvanized

• Temperature Range
• -20C to +200C

• Tensile Strength
• 250 - 350 MPa

• Thickness
• 3 mm to 6 mm

• Thread Type
• BSPT / NPT / BSP

• Tolerance
• 1% to 3%

• Usage
• Plumbing, Water supply, Gas pipelines, Industrial installations

• Yield Strength
• 195 MPa

• Application
• other, Petrochemical, Power, Oil & Gas, Shipbuilding, Chemical Industries

• Bend Radius
• 2D, 3D, 5D, Customized

• Coating Type
• Epoxy, Zinc Coated

• Color
• Black

• Connection
• Other, Welded, Threaded, Socket Weld

• Connection Type
• Butt Weld, Socket Weld, Threaded

• Diameter
• DN15 - DN1200

• Flexibility
• Rigid

• Length
• Up to 12 m

• Material
• Other , Alloy Steel

• Material Grade
• A234 WP1, WP11, WP22, WP5, WP9, WP91

• Outer Diameter
• 1/2 to 48 (21.3 mm to 1219 mm)

• Product Type
• Other, Pipe Fitting

• Rated Pressure
• Sch 10 to Sch 160, XXS

• Sealing Type
• Metal Seal

• Section Shape
• Round

• Shape
• Other, Tee, Elbow, Reducer, Coupling, Cap, Union

• Standard
• Other, ASTM A234 WP1 / WP11 / WP22 / WP5 / WP9 / WP91

• Surface Treatment
• Other, Black Painted, Galvanized, Anti-rust Oil Coated

• Temperature Range
• -20C to 593C

• Tensile Strength
• 415 - 585 MPa

• Thickness
• 1.5 mm - 30 mm

• Thread Type
• NPT, BSP

• Tolerance
• 0.5 mm

• Usage
• Industrial Pipe Connections

• Yield Strength
• 205 - 450 MPa
