Forged Fittings

Get a Price/Quote

Product Details:

Flexibility Rigid
Bend Radius As per ASME B16.11
Connection Type Screwed / Socket Weld
Tolerance 0.5 mm
Diameter Up to 4 inch
Temperature Range -29C to 593C
Coating Type Anti-corrosive Coating
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Forged Fittings Price And Quantity

Minimum Order Quantity 100 Unit

Corrosion Resistance High
Manufacturing Process Closed Die Forging
Impact Value 27 J (Min)
Marking Size, Material & Pressure on Each Fitting
Packaging Type Wooden Cases / Export Packaging
Hydrostatic Test Pressure 1.5 times rated pressure
Fire Safe Design Available
Finish Smooth Machined Finish
Hardness Max 187 HB
Compliance ISO 9001:2015, PED 2014/68/EU
Temperature Shock Resistance High

Forged Fittings Product Specifications

Section Shape Round
Diameter Up to 4 inch
Connection Threaded / Socket Weld
Usage Industrial Pipe Fittings
Length As per standard or client requirement
Material Grade ASTM A105 / F304 / F316 / F22
Product Type Forged Fittings
Rated Pressure 2000# / 3000# / 6000# / 9000#
Flexibility Rigid
Connection Type Screwed / Socket Weld
Tolerance 0.5 mm
Material Carbon Steel / Stainless Steel / Alloy Steel
Color Black / Silver
Bend Radius As per ASME B16.11
Outer Diameter 1/8 to 4 (3 mm to 100 mm)
Tensile Strength 485 MPa min
Thickness Schedule 40 / 80 / 160 / XXS
Yield Strength 250 MPa min
Surface Treatment Black / Galvanized / Sand Blasted
Shape Elbow, Tee, Coupling, Union, Plug, Bushing, Cap
Temperature Range -29C to 593C
Thread Type NPT / BSP / BSPT / Metric
Standard ASTM A105 / A182 / A350 / ASME B16.11
Coating Type Anti-corrosive Coating
Application Oil & Gas, Petrochemical, Power Plant, Water System
Sealing Type Metal to Metal / PTFE

Corrosion Resistance High
Manufacturing Process Closed Die Forging
Impact Value 27 J (Min)
Marking Size, Material & Pressure on Each Fitting
Packaging Type Wooden Cases / Export Packaging
Hydrostatic Test Pressure 1.5 times rated pressure
Fire Safe Design Available
Finish Smooth Machined Finish
Hardness Max 187 HB
Compliance ISO 9001:2015, PED 2014/68/EU
Temperature Shock Resistance High

Forged Fittings Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 5000 Unit Per Month
Delivery Time 7 Days
Main Domestic Market All India

Product Description

Specification	Forged stainless steel fittings: ASTM A182, ASTM SA182 S/W &SCRD (NPT / BSP / BSPT)Carbon steel forged fittings: A-105, S/W &SCRD (NPT / BSP / BSPT)Mild Steel Forged Fitting: IS BS ASTM ANSI B16.11 S/W & SCRDNickel Alloy forged fittings: ASTM B366 S/W & SCRDNon Ferrous metal forged fittings: IS BS ASTM S/W & SCRD
Forged steel pipe fittings Dimension	ANSI B 16.11
S Nomi Size	1/4" NB TO 4" NB
forged fitting Class	2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Forged steel fittings Range	Coupling, Plug, Socket, Bushing, Elbow, Tee, Nipple, Union,Threading Outlet, Welding Outlet, Sockt Weld Outlet.
Stainless Steel Forged Fittings	ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Duplex Steel Forged Fittings	ASTM A 182 - F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 S 31803, S 32205, S 32550, S 32750, S 32760
Carbon Steel Forged Fittings	ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2
Alloy Steel Forged Fittings	ASTM / ASME A 182 GR F5, F 9, F 11, F 12, F 22, F 91.
Copper Alloys Forged Fittings	ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500 ASTM / ASME SB 466 UNS NO. C 70600 (CU -NI- 90/10) , C 71500 (CU -NI- 70/30)
Nickel Alloy Forged Fittings	ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8020 (ALLOY 20 / 20 CB 3), UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)

Precision and Reliability

Each fitting is marked with its size, material, and pressure, guaranteeing traceability and compliance. Engineered to resist temperature shocks and maintain mechanical properties, these fittings perform dependably in environments ranging from oil and gas to power plants and water systems.

Flexible Configurations

Our forged fittings are available in multiple shapes including elbows, tees, couplings, unions, plugs, bushings, and caps. They come in various standards, surface finishes, and coatings such as anti-corrosive, black, galvanized, or sand-blasted, to suit your project's unique requirements. Connections include threaded (NPT, BSP, BSPT, Metric) and socket weld options, with sizes ranging from 1/8" to 4".

FAQ's of Forged Fittings:

Q: How are these forged fittings manufactured to ensure fire safe design and high strength?

A: Our forged fittings are produced through a closed die forging process, imparting uniform grain structure and enhanced mechanical integrity. This manufacturing technique, coupled with strict compliance to ISO 9001:2015 and PED 2014/68/EU requirements, ensures superior fire safety and structural strength.

Q: What types of industries and applications benefit from using these forged fittings?

A: These fittings are ideally suited for industrial pipe systems in sectors such as oil & gas, petrochemicals, power generation, and water distribution. Their robust fire safe design, high corrosion resistance, and ability to withstand high pressure and temperature make them dependable for critical applications.

Q: When should I choose carbon steel, stainless steel, or alloy steel material?

A: Material selection depends on your operating environment. Carbon steel fittings are often used for general service; stainless steel is suitable for corrosive or high-hygiene conditions, and alloy steel is preferred when enhanced temperature or pressure resistance is required.

Q: Where are your forged fittings typically installed within a piping system?

A: These forged fittings can be installed at various points to change direction (elbows, tees), connect different pipe sections (couplings, unions), or seal pipe ends (plugs, caps). They accommodate both threaded and socket weld connections, offering flexibility in system layout.

Q: What process is followed for marking and testing each fitting?

A: Every fitting is clearly marked with size, material, and pressure rating. Prior to dispatch, each unit undergoes a rigorous hydrostatic test at 1.5 times the rated pressure, ensuring integrity and adherence to safety standards.

Q: How does the high impact value and temperature resistance benefit operational safety?

A: A minimum impact value of 27 J and high temperature shock resistance safeguard the fittings from sudden mechanical or thermal stresses, minimizing the risk of failures during operation and enhancing the overall safety and reliability of your piping system.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Pipe Fitting' category

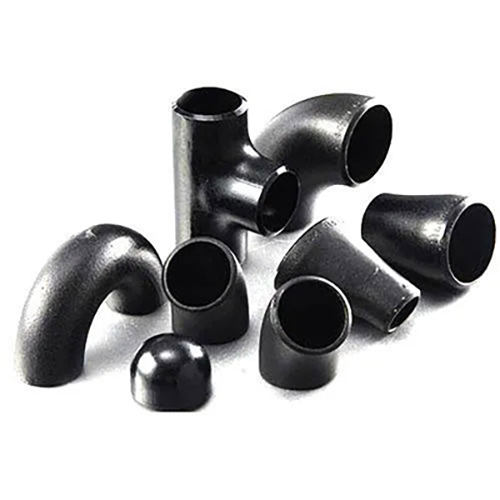

Alloy Steel Pipe Fittings Minimum Order Quantity : 100 Section Shape : Round Connection : Other, Welded, Threaded, Socket Weld Diameter : DN15 DN1200 Usage : Industrial Pipe Connections Length : Up to 12 m Product Type : Other, Pipe Fitting Material Grade : A234 WP1, WP11, WP22, WP5, WP9, WP91 Rated Pressure : Sch 10 to Sch 160, XXS Flexibility : Rigid Connection Type : Butt Weld, Socket Weld, Threaded Tolerance : 0.5 mm Material : Other , Alloy Steel Color : Black Outer Diameter : 1/2 to 48 (21.3 mm to 1219 mm) Tensile Strength : 415 585 MPa Surface Treatment : Other, Black Painted, Galvanized, Antirust Oil Coated Yield Strength : 205 450 MPa Thickness : 1.5 mm 30 mm Shape : Other, Tee, Elbow, Reducer, Coupling, Cap, Union Temperature Range : 20C to 593C Standard : Other, ASTM A234 WP1 / WP11 / WP22 / WP5 / WP9 / WP91 Sealing Type : Metal Seal Application : other, Petrochemical, Power, Oil & Gas, Shipbuilding, Chemical Industries Bend Radius : 2D, 3D, 5D, Customized Thread Type : NPT, BSP Coating Type : Epoxy, Zinc Coated

Send Inquiry

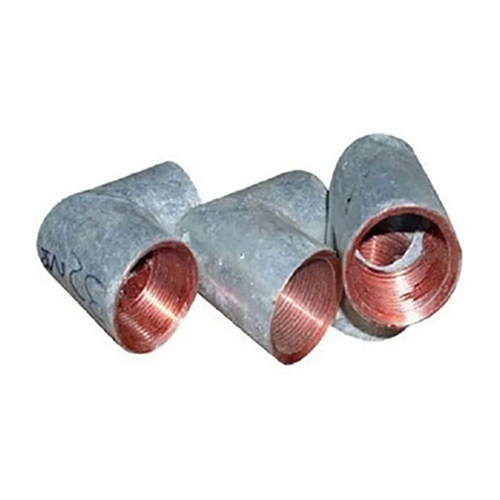

GI Screwed Pipe Fittings Minimum Order Quantity : 100 Section Shape : Round Connection : Other, Screwed / Threaded Diameter : 1/2 inch to 4 inch Usage : Plumbing, Water supply, Gas pipelines, Industrial installations Length : Varies as per fitting type Product Type : Other, GI Screwed Pipe Fittings Material Grade : IS 1239 / AISI 1010 1020 Rated Pressure : Up to 20 bar Flexibility : Rigid Connection Type : Female / Male Threaded Tolerance : 1% to 3% Material : Other , Galvanized Iron (GI) Color : Silver / Metallic Grey Outer Diameter : 15 mm to 100 mm Tensile Strength : 250 350 MPa Surface Treatment : Other, Hotdip Galvanized Yield Strength : 195 MPa Thickness : 3 mm to 6 mm Shape : Other, Elbow, Tee, Coupler, Union, Socket, Nipple, Cap, Plug, Reducer, Cross Temperature Range : 20C to +200C Standard : Other, IS 1879 / BS 143 & 1256 / ASTM A197 Sealing Type : Threaded Joint Sealing (PTFE tape or hemp) Application : other, Water, Gas, Oil, Air, Steam Bend Radius : As per fitting geometry Thread Type : BSPT / NPT / BSP Coating Type : Zinc Coated

Send Inquiry

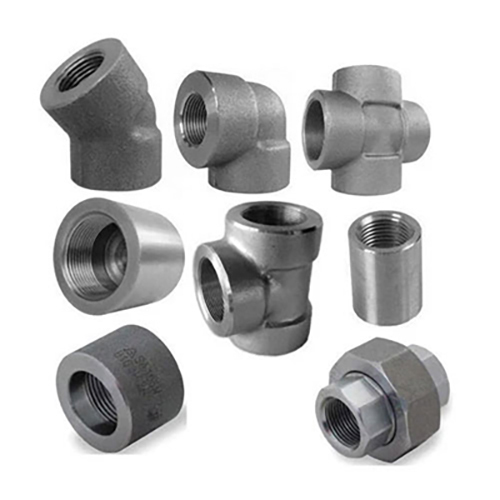

Socket Weld Fittings Minimum Order Quantity : 100 Section Shape : Round Connection : Other, Socket Weld Diameter : 3.18 mm to 114.3 mm Usage : Pipe Connections, Industrial Piping Length : Custom/Standard Lengths Product Type : Other, Socket Weld Fittings Material Grade : ASTM A105, A182 F304/L, F316/L, F11, F22 Rated Pressure : 2000LBS, 3000LBS, 6000LBS, 9000LBS Flexibility : Rigid Connection Type : Welded Tolerance : 0.1 mm Material : Other , Stainless Steel, Carbon Steel, Alloy Steel Color : Silver, Grey Outer Diameter : 1/8 NB to 4 NB Tensile Strength : 485 MPa (min) Surface Treatment : Other, Polished, Sand Blasted, Pickled Yield Strength : 205 MPa (min) Thickness : Sch 10s to Sch 160 Shape : Other, Elbow, Tee, Coupling, Union, Cross, Cap, Reducer Temperature Range : 20C to 600C Standard : Other, ASTM A182, ASME B16.11, ANSI, MSS SP83 Sealing Type : MetaltoMetal Application : other, Oil & Gas, Petrochemical, Power Plant, Water Supply Bend Radius : Standard As Per Fitting Coating Type : Rust Preventive Oil

Send Inquiry

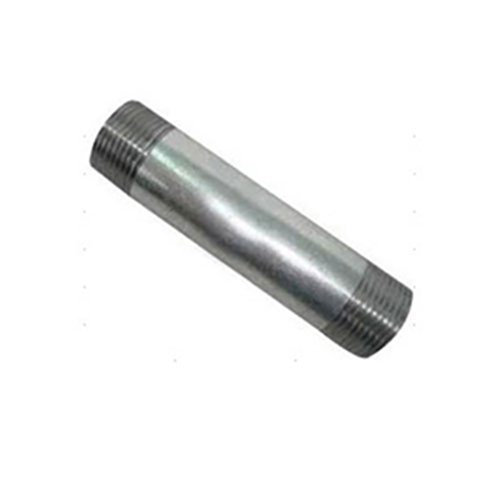

Nipple Fittings Minimum Order Quantity : 100 Section Shape : Round Connection : Other, Male Threaded Diameter : Varies as per requirement Usage : Pipe Fitting Length : 50 mm to 300 mm Product Type : Other, Nipple Fittings Material Grade : SS304/316 Rated Pressure : Up to 3000 PSI Flexibility : Rigid Connection Type : Threaded Tolerance : 0.01 mm Material : Stainless Steel Color : Silver Outer Diameter : 1/2 inch to 4 inch Tensile Strength : 515 MPa Surface Treatment : Other, Polished Yield Strength : 205 MPa Thickness : 3 mm Shape : Other, Cylindrical Temperature Range : 20C to 200C Standard : Other, ASTM A182 Sealing Type : Thread Sealing Application : other, Industrial, Plumbing, Oil & Gas Thread Type : NPT/BSP
