1PC Screwed End Ball Valve

Get a Price/Quote

Product Details:

Caliber Full Bore
Pressure PN16 / 200 PSI
Connection Screwed End (Threaded)
Channels 2 Way
Structure Ball
Material Stainless Steel
Power Manual
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

1PC Screwed End Ball Valve Price And Quantity

Minimum Order Quantity 1 Unit

Operation Quarter Turn
Leakage Testing 100% Tested
End Connection Type Female Threads
Seal Material PTFE (Teflon)
Body Type One Piece (1PC)
Corrosion Resistance High
Flow Characteristic Full Port
Maintenance Low Maintenance
Thread Standard BSP / NPT
Mounting Pad Without ISO Pad
Weight Varies by Size (Approx. 250-950g)
Handle Material Stainless Steel/Plastic Coated

1PC Screwed End Ball Valve Product Specifications

Media Water, Oil, Gas, Air, Steam
Channels 2 Way
Finish Polished
Port Size 1/2 to 2
Application Industrial & Domestic Piping
Flange No Flange
Caliber Full Bore
Pressure PN16 / 200 PSI
Power Manual
Connection Screwed End (Threaded)
Temperature of Media -10C to 120C
Material Stainless Steel
Structure Ball

Operation Quarter Turn
Leakage Testing 100% Tested
End Connection Type Female Threads
Seal Material PTFE (Teflon)
Body Type One Piece (1PC)
Corrosion Resistance High
Flow Characteristic Full Port
Maintenance Low Maintenance
Thread Standard BSP / NPT
Mounting Pad Without ISO Pad
Weight Varies by Size (Approx. 250-950g)
Handle Material Stainless Steel/Plastic Coated

1PC Screwed End Ball Valve Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 100 Unit Per Month
Delivery Time 7 Days
Main Domestic Market All India

Product Description

PRODUCT - INVESTMENT CASTING CF8 - CF8M SCREWED ENDS

FULL BORE BALL VALVE

BODY - ASTM A 351 GR. CF8 - CF8M
BALL - ASTM A 351 GR. CF8 - CF8M
STEM - CF8 - CF8M
SEAT & SEAL - TEFLON
MFG.STD - BS 5351
LEVER - PVC SLEEVE
ENDS - SCREWED TO
BSP/BSPT/NPT

HYD.TEST PRESSURE - BODY - 425 PSIG(20KG)

SEAT - 300PSIG (20KG)
SIZE RANGE - 15MM TO 80MM
MOC - STAINLESS STEEL

Engineered for Versatility and Durability

This 1PC screwed end ball valve, with its one-piece stainless steel construction and Teflon seals, is built for a wide range of industrial and domestic pipeline systems. Its corrosion-resistant design and full port allow for minimal pressure drop, making it perfect for both liquid and gas applications. With options for both BSP and NPT threading, it suits global and local requirements efficiently.

Reliable and User-Friendly Operation

A manually operated, quarter-turn mechanism ensures fast and simple shut-off or flow control. The sturdy handle, made of stainless steel or plastic-coated steel, guarantees long-term reliability even in challenging conditions. Tested for zero leakage and requiring minimal maintenance, this valve provides peace of mind with every use.

FAQ's of 1PC Screwed End Ball Valve:

Q: How do I install the 1PC screwed end ball valve with BSP or NPT threads?

A: Installation involves screwing the female-threaded ends of the valve onto the corresponding BSP or NPT male threaded pipe fittings. Use appropriate thread sealant or PTFE tape to prevent leaks, and ensure a firm but not overtightened connection.

Q: What are the primary benefits of using a one-piece ball valve design?

A: The one-piece body construction reduces potential leak paths and enhances strength, which results in higher reliability, greater corrosion resistance, and minimal maintenance requirements compared to multi-piece valves.

Q: Where can this ball valve be used effectively?

A: It is ideal for use in industrial and domestic piping involving water, oil, gas, air, or steam, and is suitable for both new installations and replacement projects in systems requiring manual shut-off control.

Q: What maintenance is required for the 1PC ball valve?

A: This valve is designed for low maintenance thanks to its corrosion-resistant stainless steel body and durable PTFE seals. Routine inspections and occasional cleaning are sufficient for ensuring smooth operation and longevity.

Q: What flow advantages does the full port design provide?

A: A full port (full bore) design allows media to flow through the valve without significant restriction, minimizing pressure loss and enabling faster and more efficient fluid transfer.

Q: Is the valve suitable for high-temperature or high-pressure applications?

A: The valve is rated for media temperatures from -10C to 120C and pressures up to PN16/200 PSI, making it a robust choice for a variety of general industrial and domestic applications, but not for extreme temperature or ultra-high-pressure environments.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Screwed SS Ball Valves' category

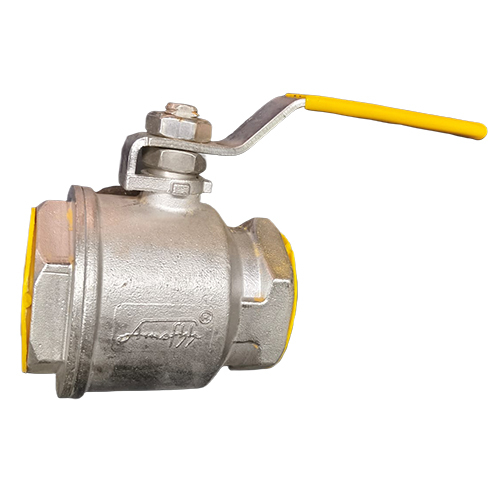

SS Screwed Ball Valves Minimum Order Quantity : 1 Structure : Other, 3 Piece / 2 Piece / 1 Piece Body Material : Other, Stainless Steel (SS304/SS316) Temperature of Media : Upto 180C Connection : Screwed (BSP / NPT Threaded) Pressure : Other, Up to PN63 / 1000 WOG Power : Manual Caliber : Full Bore Application : Industrial, Chemical, Pharmaceutical, Water Supply Finish : Polished / Matt Finish Port Size : 1/4 to 4 (Inches) Channels : 2 Way / 3 Way Media : Other, Water, Oil, Air, Gas, Steam Flange : Not Applicable (Screwed End)
