Rubber Lined Wafer Type Butterfly Valve Actuator Type

Get a Price/Quote

Product Details:

Connection Wafer Type, fits between flanges
Valve Type Rubber Lined Wafer Type Butterfly Valve
Material Body: Cast Iron / Ductile Iron / Stainless Steel, Disc: Ductile Iron / Stainless Steel / Nylon Coated, Lining: EPDM / Nitrile / Neoprene / Rubber
Power Source Pneumatic / Electric Actuator
Pressure PN10 / PN16 / ANSI 150
Media Water, Air, Oil, Chemicals
Working Temperature -10C to 120C (Depending on Lining Material)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Rubber Lined Wafer Type Butterfly Valve Actuator Type Price And Quantity

Minimum Order Quantity 1 Unit

Application HVAC, Water Treatment, Chemical, General Industries
Disc Stem Connection Double D or Pinless Shaft Design
Leakage Class Bubble Tight Shut Off
Operation Quarter Turn (90 rotation)
Design Standard API 609 / BS 5155
Mounting ISO 5211 Top Flange for Actuator
Seat Type Integral Rubber Lined
Body Coating Fusion Bonded Epoxy or Painted
Face to Face Dimension As per standard EN 558-1
Actuator Accessories Limit Switch, Solenoid Valve, Positioner (optional)

Rubber Lined Wafer Type Butterfly Valve Actuator Type Product Specifications

Media Water, Air, Oil, Chemicals
Material Body: Cast Iron / Ductile Iron / Stainless Steel, Disc: Ductile Iron / Stainless Steel / Nylon Coated, Lining: EPDM / Nitrile / Neoprene / Rubber
Working Temperature -10C to 120C (Depending on Lining Material)
Valve Type Rubber Lined Wafer Type Butterfly Valve
Pressure PN10 / PN16 / ANSI 150
Power Source Pneumatic / Electric Actuator
Port Size DN40 to DN600 (1.5 to 24)
Shape Wafer (Flat Circular Disc)
Connection Wafer Type, fits between flanges

Application HVAC, Water Treatment, Chemical, General Industries
Disc Stem Connection Double D or Pinless Shaft Design
Leakage Class Bubble Tight Shut Off
Operation Quarter Turn (90 rotation)
Design Standard API 609 / BS 5155
Mounting ISO 5211 Top Flange for Actuator
Seat Type Integral Rubber Lined
Body Coating Fusion Bonded Epoxy or Painted
Face to Face Dimension As per standard EN 558-1
Actuator Accessories Limit Switch, Solenoid Valve, Positioner (optional)

Rubber Lined Wafer Type Butterfly Valve Actuator Type Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 1000 Unit Per Month
Delivery Time 7 Days
Main Domestic Market All India

Product Description

Discover the champion of flow control-our Rubber Lined Wafer Type Butterfly Valve Actuator Type. Offering the best price on the market, this outstanding valve delivers bubble-tight shut off, ensuring reliable and exquisite performance in HVAC, water treatment, chemicals, and general industries. Procure customizable models crafted from durable materials like cast iron, ductile iron, or stainless steel, with a range of linings for precise applications. Actuator options support quarter-turn operation for smooth, efficient control. Certified design standards, exceptional face-to-face dimensions, and supreme mounting adaptability make this product the trusted choice of exporters, manufacturers, suppliers, and traders across India.

Rubber Lined Wafer Type Butterfly Valve Actuator: Usage & Features

Engineered for versatility, this valve excels in HVAC, water treatment, and chemical processing. Its outstanding quarter-turn operation and integral rubber lining guarantee robust sealing, even with demanding media such as water, air, oil, and chemicals. The customizable disc and body materials, along with actuator accessories, make it a fitting choice for general industries where bubble-tight shut off and exemplary durability are essential for precise flow regulation.

Certifications, Delivery & Supply of Rubber Lined Wafer Type Butterfly Valve Actuator

Every valve comes certified to API 609 and BS 5155, promising consistent quality. Our supply chain ensures stock ready for bulk or urgent requirements, enabling goods transport with express shipping options worldwide. Valves are custom-packed for safe transit, and sample policies are available for select clients. As a leading exporter and supplier in India, we champion efficient procurement and swift delivery for all industrial clients.

FAQ's of Rubber Lined Wafer Type Butterfly Valve Actuator Type:

Q: How does the actuator type benefit the operation of the Rubber Lined Wafer Type Butterfly Valve?

A: The actuator type allows for precise quarter-turn (90) operation, providing reliable and smooth control of flow. This automation option ensures bubble-tight shut off and simplifies valve operation in automated systems.

Q: What applications are suitable for this butterfly valve?

A: This valve excels in HVAC systems, water treatment facilities, chemical processing, and general industrial use, handling media like water, air, oil, and chemicals with consistent, secure performance.

Q: When is the best time to procure a Rubber Lined Wafer Type Butterfly Valve?

A: It is ideal to procure these valves during the project design stage or ahead of scheduled maintenance to ensure optimal fit, timely delivery, and the ability to customize according to required standards and actuator needs.

Q: Where can customers request express shipping or stock-ready options?

A: Customers can request express shipping and stock-ready options directly from our sales team. We offer efficient goods transport and quick turnaround on standard and customizable valve models both in India and for export.

Q: What certifications and standards do these valves adhere to?

A: Our valves are manufactured in compliance with API 609 and BS 5155, and follow EN 558-1 for face-to-face dimensions, ensuring reliability and quality in every unit supplied.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Rubber Lined Wafer Type Butterfly Valve' category

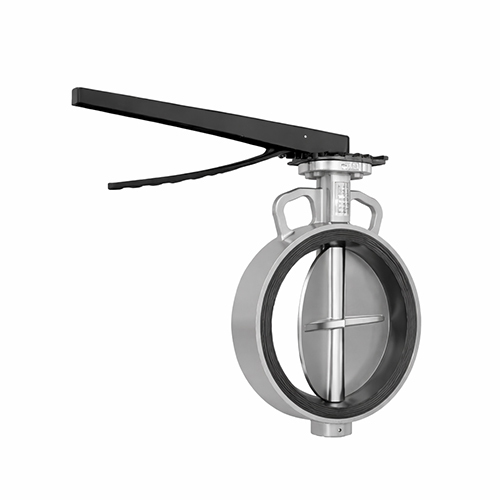

Rubber Lined Wafer Type Butterfly Valve Handle Type Minimum Order Quantity : 1 Power Source : Other, Manual (Handle Operated) Valve Type : Other, Rubber Lined Wafer Type Butterfly Valve Handle Type Pressure : Other, PN10 / PN16 Port Size : 40mm to 600mm (1.5 to 24) Shape : Wafer Type Connection : Other, Wafer (Sandwiched between Flanges) Media : Other, Water, Air, Oil, Mild Chemicals Working Temperature : Other, Up to 120C Material : Other, Body: Cast Iron / Ductile Iron, Disc: SG Iron / Stainless Steel, Liner: EPDM / NBR

Send Inquiry

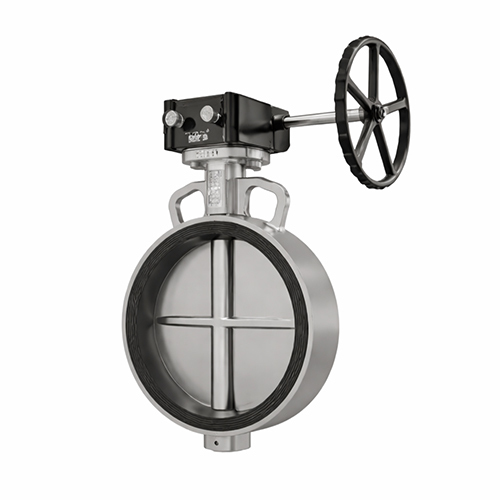

Rubber Lined Wafer Type Butterfly Valve Gear Type Minimum Order Quantity : 1 Power Source : Other, Manual, Gear Operated Valve Type : Other, Wafer Type Butterfly Valve, Gear Operated Pressure : Other, PN10/PN16 (Up to 16 bar) Port Size : 50mm to 600mm (2 to 24) Shape : Round/Wafer Connection : Other, Wafer Type, fits between flanges Media : Other, Water, Air, Oil, Mild Chemicals Working Temperature : Other, 10C to +80C (depending on lining material) Material : Other, Body: Cast Iron/ Ductile Iron, Disc: Stainless Steel/ Ductile Iron, Lining: EPDM Rubber

Send Inquiry

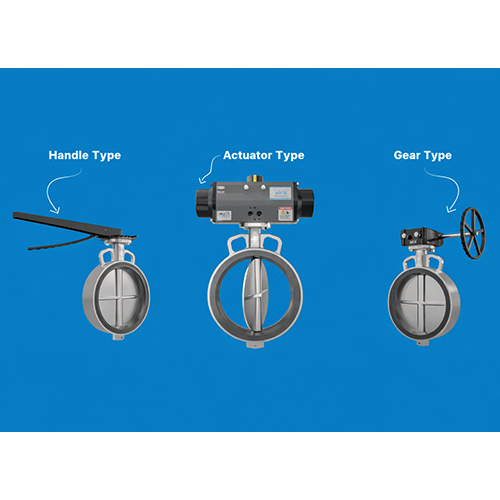

Rubber Lined Wafer Type Butterfly Valve Minimum Order Quantity : 1 Power Source : Other, Manual (Lever/Gear Operated) Valve Type : Wafer Type Butterfly Valve Pressure : Other, PN 10/PN 16 Rated Port Size : DN 40 to DN 600 (1 1/2 to 24) Shape : Disc Type, Wafer Design Connection : Other, Wafer Type, Fits Between Flanges Media : Other, Water, Air, Gas, Oil and other NonCorrosive Fluids Working Temperature : Other, Up to 120C Material : Other, Cast Iron Body with Rubber Lining
