Pneumatic QRC Coupling

Get a Price/Quote

Product Details:

Connection Threaded/Push type
Sealing Nitrile rubber or Viton O-ring
Torque Hand tight (not torque loaded)
Bore Standard bore sizes available (customized on request)
Head Code Hex
Thread BSP/NPT/Metric
Max. Speed Suitable for rapid coupling usage
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Pneumatic QRC Coupling Price And Quantity

Minimum Order Quantity 100 Unit

Release Type One-touch
Corrosion Resistance Yes, depending on material and coating
Gender Male/Female
Color Silver/Brass/Custom
Compatibility Standard pneumatic hoses and tools
Weight Varies by size and material
Working Temperature -20C to +80C
Coupler Type Single shut off/Double shut off
Locking Mechanism Ball locking
Operating Pressure 0-35 bar
Flow Rate Up to 1500 L/min (varies by size)

Pneumatic QRC Coupling Product Specifications

Torque Hand tight (not torque loaded)
Connection Threaded/Push type
Sealing Nitrile rubber or Viton O-ring
Technique Precision machined
Head Code Hex
Bore Standard bore sizes available (customized on request)
Material Brass/Steel/Stainless steel
Surface Treatment Zinc plated/Chrome plated
Inner Diameter 6 mm
Outer Diameter 12 mm
Shape Straight/Hexagonal
Thread BSP/NPT/Metric
Structure Two part (male & female coupler)
Standard ISO 6150/Equivalent
Application Quick connection and disconnection of pneumatic air lines and tools
Max. Speed Suitable for rapid coupling usage

Release Type One-touch
Corrosion Resistance Yes, depending on material and coating
Gender Male/Female
Color Silver/Brass/Custom
Compatibility Standard pneumatic hoses and tools
Weight Varies by size and material
Working Temperature -20C to +80C
Coupler Type Single shut off/Double shut off
Locking Mechanism Ball locking
Operating Pressure 0-35 bar
Flow Rate Up to 1500 L/min (varies by size)

Pneumatic QRC Coupling Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 1000 Unit Per Month
Delivery Time 7 Days
Main Domestic Market All India

Product Description

Salient Features

Designed for quick and convenient coupling or uncoupling of pneumatic lines without using tools.
Ensures zero or minimal air leakage during connection and disconnection, improving efficiency.
Built-in valve automatically closes when disconnected to prevent air loss.
Made from high-quality materials such as brass, stainless steel, or carbon steel for long life and corrosion resistance

Advanced Locking Mechanism

Utilizing a precise ball locking system, these QRC couplings guarantee a secure and stable connection every time. The locking mechanism ensures leakage prevention and remains reliable during repeated cycles of connection and disconnection, making it ideal for industrial pneumatic applications.

Versatile Compatibility

Designed to suit a variety of hose sizes and tools, the couplings support threaded (BSP/NPT/Metric) and push-type connections. Standardized to fit most pneumatic systems, they can be tailored in bore size, material, and color, making them flexible for diverse industrial needs.

Robust Construction and Finish

Choose from zinc or chrome plated brass, steel, or stainless steel bodies for optimum durability and enhanced corrosion resistance. Precision machining, nitrile or Viton seals, and hand-tight torque promise long service life, even in harsh environments.

FAQ's of Pneumatic QRC Coupling:

Q: How do I install a Pneumatic QRC Coupling in my air line system?

A: To install, select the appropriate male and female parts based on your hose or tool connection type (threaded or push type). Hand-tighten each coupler to ensure a secure, leak-free fit-no torque tool is necessary. The release mechanism is one-touch, allowing quick and effortless disconnection.

Q: What materials are available for these couplings, and how does that affect corrosion resistance?

A: The couplings are available in brass, steel, or stainless steel, with optional zinc or chrome plating. Material selection impacts corrosion resistance-stainless steel and plated variants are best for harsh or moist environments, ensuring optimal longevity.

Q: When should I use single shut off versus double shut off QRC couplings?

A: Single shut off couplers are suitable when you need to seal the supply line only, keeping the tool side open. Double shut off types are ideal for situations where both sides of the connection need to be safely sealed upon disconnection, minimizing air leakage and enhancing safety.

Q: Where are these QRC couplings primarily used?

A: These quick release couplings are widely used in industries such as manufacturing, automotive, and workshops-anywhere quick and reliable connection or disconnection of pneumatic lines and tools is essential for productivity and safety.

Q: What is the process for connecting and disconnecting the QRC coupling?

A: Align the male and female coupler sections and push them together until the ball locking mechanism clicks into place. For disconnection, simply press the one-touch release sleeve to instantly separate the two parts, stopping air flow based on the coupler's shut off configuration.

Q: What are the main benefits of using these pneumatic QRC couplings?

A: They provide rapid, tool-free changes of tools or hoses, heightened safety through secure locking, reduced risk of leaks, and enhanced adaptability to various hose and tool connections. Their durability and resistance to corrosion also lead to lower maintenance requirements.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Quick Release Coupling' category

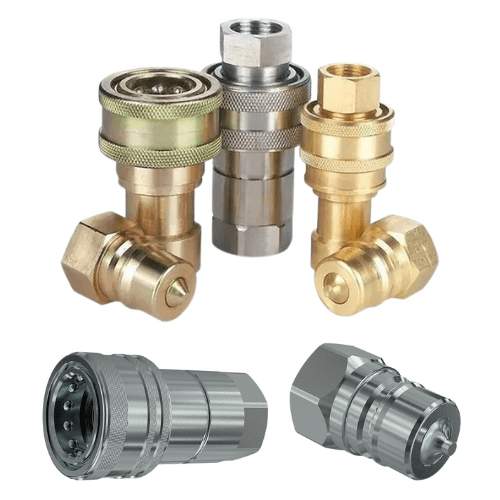

Hydraulic QRC Coupling Minimum Order Quantity : 100 Bore : Standard and custom bore sizes available (typically 1/4 to 2) Inner Diameter : As per model, typically from 6 mm to 50 mm Surface Treatment : Other, Zinc plated, Chrome plated, Corrosion resistant coating Material : Other, Carbon Steel, Stainless Steel, Brass Head Code : Other, Hex Torque : Suitable for standard hydraulic line torque values Sealing : Nitrile (NBR), Viton Oring, leakproof construction Connection : Other, Quick release (push and pull locking mechanism) Technique : Other, Precision machined Application : Hydraulic systems, pneumatic equipment, fluid transfer lines, agricultural machinery, industrial equipment Standard : ISO 7241A / ISO 7241B, DIN, SAE standards compatible Structure : Other, Plug and Socket assembly Thread : BSP, NPT, UNF, Metric threads available Outer Diameter : As per model, typically from 14 mm to 60 mm Shape : Other, Straight, cylindrical body with knurled gripping surface
