1Pc Screwed End Ball Valve
Product Details:
- Channels Single channel
- Caliber Full Bore
- Connection Screwed End
- Structure One Piece
- Pressure PN16
- Material Stainless Steel
- Power Manual
- Click to View more
X
1Pc Screwed End Ball Valve Price And Quantity
- PTFE
- BSP/NPT
- Yes
- Quarter Turn
- 100% factory tested
- Insulated lever handle
- One Piece
1Pc Screwed End Ball Valve Product Specifications
- Polished
- -20C to 120C
- PN16
- Stainless Steel
- One Piece
- 1/2 to 2
- Full Bore
- Screwed End
- Water, Oil, Gas
- Single channel
- Manual
- Industrial, Plumbing, Water Supply
- No flange (Screwed connection)
- PTFE
- BSP/NPT
- Yes
- Quarter Turn
- 100% factory tested
- Insulated lever handle
- One Piece
Product Description

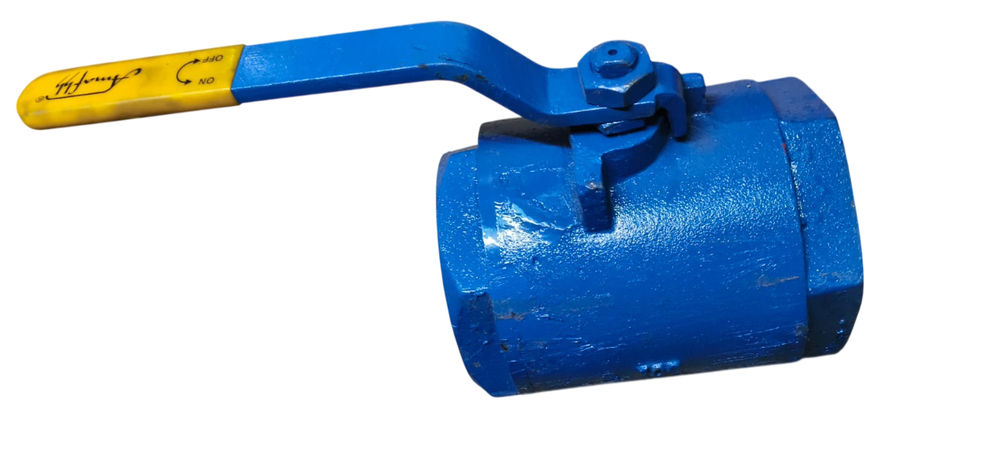

Product: Cast Iron 1PC Screwed Ends Full Bore Ball Valve
- Body: IS 210 Gr. FG 200
- Ball: Stainless Steel (SS)
- Stem: Stainless Steel (SS)
- Seat & Seal: PTFE
- Manufacturing Standard: BS 5159
- Inspection & Test: BS 6755
- Lever: Carbon Steel with PVC Sleeve
- Ends: Screwed to BSP/ BSPT
Hydraulic Test Pressure:
- Body: 225 Psig (16 Kg/Cm²)
- Seat: 165 Psig (11.5 Kg/Cm²)
- Size Range: 15 mm to 300 mm
- Material of Construction (MOC): Cast Iron
Precision Engineering for Various Applications
Built for industrial, plumbing, and water supply sectors, this ball valve meets rigorous standards with full bore, single channel flow, providing minimal pressure drop and optimal media passage. Its screwed end, one-piece structure guarantees ease of fitting and secure connection without a flange, making it suitable for rapid installation in diverse environments.
Premium Materials and Tested Quality
Manufactured from polished stainless steel and equipped with PTFE seals, this valve delivers longevity and resistance to corrosion. Each unit undergoes comprehensive factory testing to ensure absolute leak-proof operation, aligning with stringent industry expectations.
FAQ's of 1Pc Screwed End Ball Valve:
Q: How does the insulated lever handle improve the operation of this ball valve?
A: The insulated lever handle ensures safe, comfortable manual operation, reducing heat transfer and making the valve easy to operate even in high or low temperature environments.Q: What applications is this screwed end ball valve designed for?
A: This valve is suitable for a wide range of uses, including industrial processing, plumbing networks, and water supply systems, accommodating water, oil, and gas media reliably.Q: When should this ball valve be selected over flanged models?
A: Choose this screwed end ball valve when you need a compact, easy-to-install solution for situations where rapid installation and removal are desired, especially when working with threaded fittings in smaller diameter pipelines.Q: Where does the ball valve achieve its leak-proof performance?
A: Leak-proof performance is achieved through high-quality PTFE seals and precision machining, ensuring completely tight closure at every operation. Each valve is 100% factory tested before dispatch for reliability.Q: What is the process for installing the 1Pc screwed end ball valve?
A: Installation involves threading the valve onto BSP or NPT pipe ends, tightening with the appropriate tools, and ensuring proper sealing with suitable threads or PTFE tape to prevent leaks.Q: What are the benefits of a one-piece, full bore ball valve design?
A: A one-piece, full bore design minimizes pressure drop and allows maximum flow, offering greater efficiency and durability by reducing the number of potential leak points in the valve body.Tell us about your requirement
