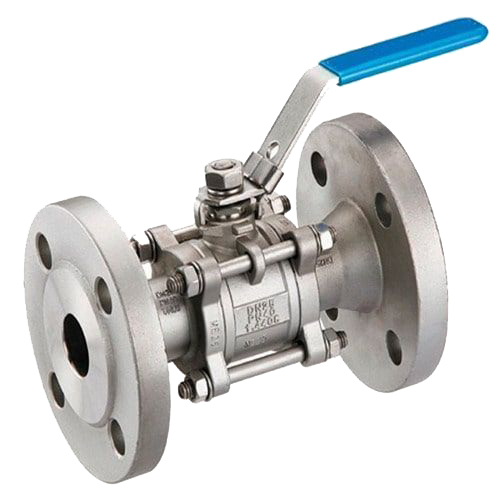

3Pc Flanged Ends Ball Valve
Product Details:
- Connection Flanged
- Pressure 150# to 600#
- Structure 3 Piece Body, Flanged Ends
- Channels Single Channel
- Caliber Full Bore
- Material Stainless Steel, Carbon Steel, Cast Steel
- Power Manual
- Click to View more
X
3Pc Flanged Ends Ball Valve Price And Quantity
- 1 Unit
- ISO 5211 Pad
- Lever or Gear Operated
- ASME B16.10
- SS304/SS316
- Class VI
- Yes
- Raised Face Flange
- Available
- API 598
- API 6D/BS 5351
- PTFE/RPTFE
3Pc Flanged Ends Ball Valve Product Specifications
- Water, Oil, Gas, Steam
- Flanged
- Mirror/Matte Finish
- -20C to 200C
- 150# to 600#
- 3 Piece Body, Flanged Ends
- Industrial, Chemical, Petrochemical, Water Treatment
- Manual
- Single Channel
- ANSI, DIN, BS Standards
- 1/2 inch to 12 inch
- Full Bore
- Stainless Steel, Carbon Steel, Cast Steel
- ISO 5211 Pad
- Lever or Gear Operated
- ASME B16.10
- SS304/SS316
- Class VI
- Yes
- Raised Face Flange
- Available
- API 598
- API 6D/BS 5351
- PTFE/RPTFE
3Pc Flanged Ends Ball Valve Trade Information
- Cash in Advance (CID)
- 100 Unit Per Month
- 7 Days
- All India
Product Description
PRODUCT - CAST IRON 3PC FLANGED ENDS FULL BORE BALL VALVE A.S.A 150#
- BODY - IS 210 Gr. FG 200
- BALL - SS
- STEM - SS
- SEAT & SEAL - PTFE
- MFG. STD - BS 5159
- INSP. & TEST - BS 6755
- LEVER - CARBON STEEL WITH PVC SLEEVE
- ENDS - FLANGED TO ANSI B 16.1 FF 125#
HYD.TEST PRESSURE -
- BODY - 225 Psig(16Kg/Cm2)
- SEAT - 165Psig(11.5Kg/Cm2)
- SIZE RANGE - 15MM TO 300MM
- MOC - CAST IRON
Robust Construction and Versatile Applications
This 3-piece flanged ball valve boasts advanced engineering and adaptability for use across industries such as chemical processing, petrochemical plants, and water treatment facilities. Its full bore construction and the availability of both mirror and matte finishes make it suitable for demanding environments, providing optimal flow characteristics and reliability.
Advanced Safety and Reliability Features
The valve integrates crucial safety elements like blowout proof stem and fire-safe design, tested under API 598 standards, ensuring performance and security even under severe conditions. Rated for Class VI leakage, it offers exceptional sealing, while the ISO 5211 pad allows for straightforward actuation integration for either manual or automated operation.
Wide Range of Sizes and Operational Flexibility
Available in sizes from 1/2 inch to 12 inch and compatible with pressure classes between 150# and 600#, this valve can accommodate various flow requirements. Suitable for manual operation via lever or gear, it offers installation flexibility and easy maintenance thanks to its three-piece body design.
FAQ's of 3Pc Flanged Ends Ball Valve:
Q: How does the 3Pc Flanged Ends Ball Valve ensure leak-free performance?
A: This ball valve features PTFE or RPTFE seats and a Class VI leakage rating, providing excellent sealing. The fire-safe design and blowout proof stem further enhance its reliability under high-pressure or elevated temperature service, meeting stringent API 598 testing requirements.Q: What materials are used in the construction of this ball valve, and how do they benefit industrial applications?
A: The valve is manufactured from stainless steel (SS304/SS316), carbon steel, or cast steel, ensuring corrosion resistance and mechanical strength. These materials make it well-suited for harsh operating environments found in chemical, petrochemical, and water treatment facilities.Q: When should I consider installing this type of valve in my process system?
A: You should use this valve when you require reliable isolation of water, oil, gas, or steam in applications demanding robust pressure handling (150# to 600#), chemical compatibility, and easy maintenance. Its full bore design and wide temperature tolerance (-20C to 200C) accommodate diverse industrial processes.Q: Where can this 3-piece flanged ends ball valve be installed?
A: This valve is intended for use in industrial and utility pipelines, chemical processing units, petrochemical installations, and water treatment plants, where flanged end connections and strict leak-tight performance are essential.Q: What is the process for operating and maintaining this ball valve?
A: Operation is manual via lever or gear. Its three-piece body enables straightforward disassembly, inspection, and replacement of internal components, facilitating quick and cost-effective maintenance to minimize plant downtime.Q: How does the ISO 5211 mounting pad benefit users?
A: The integrated ISO 5211 pad allows for easy mounting of actuators, providing flexibility for manual or automated valve operation. This enables efficient adaptation for remote or automated control systems.Q: What are the primary benefits of choosing this valve for industrial flow control?
A: Key benefits include superior sealing, robust and fire-safe construction, compatibility with various international flange standards, ease of maintenance, and suitability for multiple media types and temperatures, delivering reliable performance in challenging industrial settings.Tell us about your requirement
