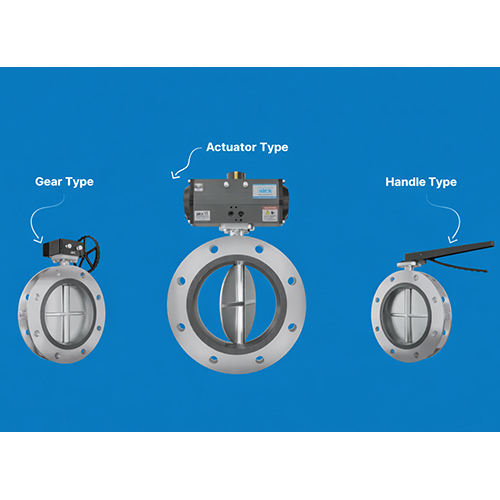

Rubber Lined Double Flanged Butterfly Valve

Get a Price/Quote

Product Details:

Connection Double Flanged
Valve Type Double Flanged Butterfly Valve
Material Cast Iron (body), EPDM/Nitrile Rubber (liner), Stainless Steel (disc/shaft)
Power Source Manual (Hand Lever or Gear Operated)
Pressure Up to PN16 (16 bar)
Media Water, Air, Oil, Slurries, Chemicals
Working Temperature -10C to 80C
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Rubber Lined Double Flanged Butterfly Valve Price And Quantity

Minimum Order Quantity 1 Unit

Coating Fusion Bonded Epoxy Painted
Operation Manual, Electric, or Pneumatic Actuation Available
Disc Material Ductile Iron/CF8/CF8M
Face to Face Length As per EN 558 Series 13 / ISO 5752
Testing Standard As per IS/BS/ISO Standard
Leakage Class Class VI (Bubble Tight Shutoff)
Shaft Material Stainless Steel
Application Potable water distribution, Wastewater treatment, Chemical & Process industries
Body Design Full Lug Type with Double Flange
Seat/Lining Material EPDM, Nitrile or Neoprene Rubber

Rubber Lined Double Flanged Butterfly Valve Product Specifications

Power Source Manual (Hand Lever or Gear Operated)
Pressure Up to PN16 (16 bar)
Valve Type Double Flanged Butterfly Valve
Media Water, Air, Oil, Slurries, Chemicals
Material Cast Iron (body), EPDM/Nitrile Rubber (liner), Stainless Steel (disc/shaft)
Connection Double Flanged
Working Temperature -10C to 80C
Port Size 50mm to 1200mm (2 to 48)
Shape Round (Disc Type)

Coating Fusion Bonded Epoxy Painted
Operation Manual, Electric, or Pneumatic Actuation Available
Disc Material Ductile Iron/CF8/CF8M
Face to Face Length As per EN 558 Series 13 / ISO 5752
Testing Standard As per IS/BS/ISO Standard
Leakage Class Class VI (Bubble Tight Shutoff)
Shaft Material Stainless Steel
Application Potable water distribution, Wastewater treatment, Chemical & Process industries
Body Design Full Lug Type with Double Flange
Seat/Lining Material EPDM, Nitrile or Neoprene Rubber

Rubber Lined Double Flanged Butterfly Valve Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 1000 Unit Per Month
Delivery Time 7 Days
Main Domestic Market All India

Product Description

Experience terrific savings and unmatched value with our Rubber Lined Double Flanged Butterfly Valve. Personalise your solution with a pivotal selection of disc materials-Ductile Iron, CF8, or CF8M-and rugged stainless steel shafts. Uncommon versatility is assured with EPDM, Nitrile, or Neoprene rubber linings. Operate manually or upgrade to electric or pneumatic actuation. Certified to IS/BS/ISO standards, it guarantees bubble-tight shutoff (Class VI) and corrosion resistance with fusion bonded epoxy coating. Ideal for water, chemicals, and more, this valve ensures reliable performance across industries while optimizing cost and longevity.

Versatile Usage Across Key Sectors

The Rubber Lined Double Flanged Butterfly Valve is pivotal for applications in potable water distribution, wastewater treatment, and the chemical and process industries. Its valve design caters to both general and specific usage, handling a variety of media such as water, air, oil, slurries, and chemicals. Commonly used by municipal water authorities, industrial plants, and process engineers, this valve is a staple component that brings performance and reliability to vital infrastructure and large-scale operations.

Certifications, Export Markets & Packaging Details

Our valves comply with leading certifications, including IS/BS/ISO standards, ensuring top performance and safety. We export extensively, with our main markets spanning Asia, Middle East, Africa, and Europe. Packaging is designed for safe exchange and minimal freight damage, often in wooden crates or export-standard cartons. Competitive list pricing ensures strong value for exporters, while custom packaging options are available to meet varied international requirements.

FAQ's of Rubber Lined Double Flanged Butterfly Valve:

Q: How does the double flanged design benefit installation and operational efficiency?

A: The double flanged design provides robust alignment and secure installation between pipe flanges, enabling easier maintenance, tighter shutoff, and improved operational integrity, especially in demanding industrial or municipal settings.

Q: What types of media can this butterfly valve safely control?

A: This valve is versatile, engineered for safe use with water, air, oil, slurries, and numerous chemicals, making it suitable for a variety of industrial, municipal, and process applications.

Q: When should I consider using a rubber lined butterfly valve with EPDM, Nitrile, or Neoprene rubber?

A: Select EPDM, Nitrile, or Neoprene lining based on your media type and temperature range. EPDM is ideal for potable water and general applications, Nitrile suits oily or fuel-rich environments, while Neoprene is excellent for abrasive or chemical-rich conditions.

Q: What is the process for choosing manual, electric, or pneumatic actuation?

A: Choose actuation based on your control requirements: manual for basic on/off applications, electric for automated systems, and pneumatic when quick or frequent operation is necessary, especially in large scale or remote installations.

Q: Where can this rubber lined butterfly valve be most effectively deployed?

A: This valve is most effective in water distribution networks, wastewater plants, chemical processing facilities, and any industrial setup requiring reliable flow control, including harsh environments with corrosive or abrasive media.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Rubber Lined Double Flanged Butterfly Valve' category

Rubber Lined Double Flanged Butterfly Valve Minimum Order Quantity : 1 Connection : Other, Double Flanged, Drilled to ANSI / DIN / BS Standards Working Temperature : Other, Up to 120C (Depending on lining material) Port Size : DN50 to DN1200 Shape : Round Power Source : Other, Manual (Hand Lever / Gear Operated) Valve Type : Other, Rubber Lined Double Flanged Butterfly Valve Pressure : Other, PN10 / PN16 rated Material : Other, Cast Iron / Ductile Iron Body, Rubber Lining (EPDM/NBR/Viton), Stainless Steel Disc / Shaft Media : Other, Water, Sewage, Air, Oil, Chemicals

Send Inquiry

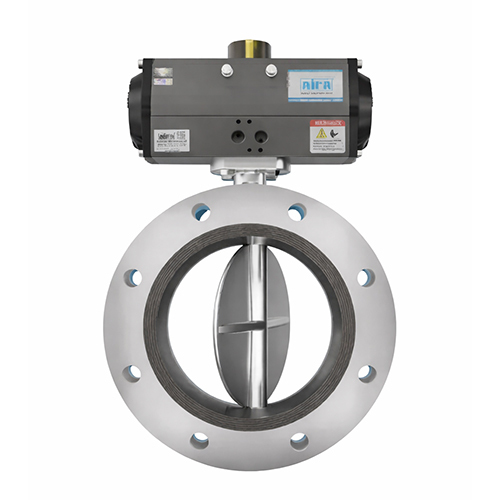

Rubber Lined Double Flanged Butterfly Valve Actuatore Type Minimum Order Quantity : 1 Connection : Other, Flanged Ends (Drilled to DIN/ANSI/BS Standards) Working Temperature : Other, 10C to +80C (Depending on liner type) Port Size : DN50DN1200 (248) Shape : Double Flanged Power Source : Other, Electric or Pneumatic Actuator Valve Type : Other, Rubber Lined Double Flanged Butterfly Valve Actuator Type Pressure : Other, PN10/PN16 Material : Other, Body: Cast Iron/Ductile Iron, Disc: Stainless Steel/DI, Liner: EPDM/NBR Rubber Media : Other, Water, Oil, Air, Chemicals, Slurry
