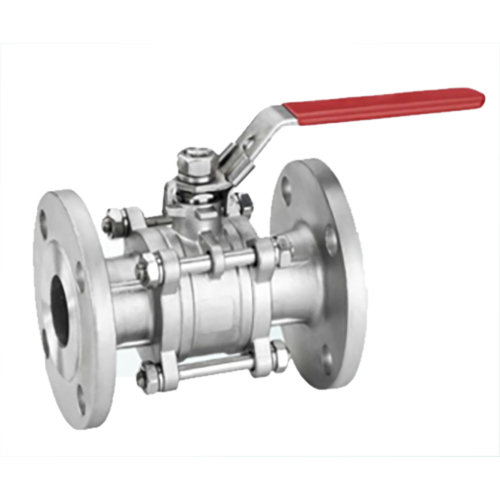

3Pc Flanged Ends Ball Valve

Get a Price/Quote

Product Details:

Caliber Full Bore
Pressure Class 150/300/600
Channels Single
Structure 3 Piece Flanged Ends
Connection Flanged
Material Stainless Steel / Carbon Steel
Power Manual
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

3Pc Flanged Ends Ball Valve Price And Quantity

Minimum Order Quantity 1 Unit

Seat Material PTFE / R-PTFE / CFT
Design Standard API 607 / BS 5351
Ball Test Pressure 1.1 times rated pressure
Mounting Pad ISO 5211 (optional)
End Connection Raised Face (RF) / Flat Face (FF)
Leakage Class Class VI (Bubble tight)
Operation Quarter Turn Lever
Stem Design Blow-out Proof
Locking Arrangement Available
Body Test Pressure 1.5 times rated pressure
Fire Safe Yes

3Pc Flanged Ends Ball Valve Product Specifications

Temperature of Media Up to 180C
Caliber Full Bore
Structure 3 Piece Flanged Ends
Pressure Class 150/300/600
Application Industrial, Chemical, Petrochemical, Water Treatment
Flange ANSI B16.5 / DIN / BS
Material Stainless Steel / Carbon Steel
Port Size 1 inch to 10 inch
Power Manual
Channels Single
Media Water, Oil, Gas, Steam
Connection Flanged
Finish Polished

Seat Material PTFE / R-PTFE / CFT
Design Standard API 607 / BS 5351
Ball Test Pressure 1.1 times rated pressure
Mounting Pad ISO 5211 (optional)
End Connection Raised Face (RF) / Flat Face (FF)
Leakage Class Class VI (Bubble tight)
Operation Quarter Turn Lever
Stem Design Blow-out Proof
Locking Arrangement Available
Body Test Pressure 1.5 times rated pressure
Fire Safe Yes

3Pc Flanged Ends Ball Valve Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 100 Unit Per Month
Delivery Time 7 Days
Main Domestic Market All India

Product Description

PRODUCT - CAST IRON 3PC FLANGED ENDS FULL BORE BALL VALVE A.S.A 150#

BODY - IS 210 Gr. FG 200
BALL - SS
STEM - SS
SEAT & SEAL - PTFE
MFG. STD - BS 5159
INSP. & TEST - BS 6755
LEVER - CARBON STEEL WITH PVC SLEEVE
ENDS - FLANGED TO ANSI B 16.1 FF 125#

HYD.TEST PRESSURE -

BODY - 225 Psig(16Kg/Cm2)
SEAT - 165Psig(11.5Kg/Cm2)
SIZE RANGE - 15MM TO 300MM
MOC - CAST IRON

Advanced Safety and Performance

Equipped with fire-safe design and a blow-out proof stem, the valve offers enhanced safety in critical applications. The Class VI leakage rating (bubble tight) ensures superior sealing, making it ideal for industries where integrity and performance are paramount. These valves also undergo rigorous body and ball pressure tests, guaranteeing long-lasting durability.

Versatile Applications

Suitable for water, oil, gas, and steam, this three-piece flanged ball valve meets the demands of industrial, chemical, petrochemical, and water treatment sectors. Available in sizes from 1 inch to 10 inch, it handles temperatures up to 180C and is crafted from corrosion-resistant stainless or carbon steel for reliability in diverse environments.

User-Friendly Operation and Maintenance

The quarter-turn lever allows simple manual operation, while the locking arrangement supports secure handling. Full-bore design reduces flow resistance, and the three-piece body enables easy maintenance without removing the valve from the pipeline. Optional ISO 5211 mounting pads offer actuator compatibility for future automation needs.

FAQ's of 3Pc Flanged Ends Ball Valve:

Q: How does the 3Pc Flanged Ends Ball Valve ensure leak-free operation?

A: This valve achieves Class VI bubble-tight leakage performance through its precision-engineered seat materials (PTFE/R-PTFE/CFT) and robust design, making it suitable for applications where stringent sealing is essential.

Q: What industries commonly use this ball valve, and why is it preferred?

A: Industries such as industrial, chemical, petrochemical, and water treatment commonly choose this valve due to its adaptability for water, oil, gas, and steam applications, reliable sealing, and fire-safe construction.

Q: When should I consider using the optional ISO 5211 mounting pad?

A: The optional ISO 5211 mounting pad should be selected if future or immediate automation is desired, as it allows for easy installation of actuators for automated or remote control operation.

Q: Where can the 3Pc Flanged Ends Ball Valve be installed?

A: This valve is designed for installation in pipelines requiring flanged connections, with end options for Raised Face (RF) or Flat Face (FF), and is suitable for new or replacement installations in various industrial systems.

Q: What is the process for maintaining the valve?

A: Thanks to its three-piece construction, maintenance is straightforward-the central body section can be removed for cleaning, inspection, or seat replacement without dismantling the entire pipeline, reducing downtime.

Q: How does the fire-safe feature benefit operational safety?

A: The fire-safe design ensures the valve maintains shut-off functionality even during fire incidents, helping to prevent the spread of hazardous media and protecting personnel and equipment in high-risk environments.
